Arch KDE -> Hyprland
2024-11-10 14:12:24 #Arch

KDE 上 Wayland 后天天给我 crash, 就直接换 Hyprland 了

1. 安装

  1. 在 Arch KDE(或现有桌面) 下
  2. yay hyprwayland-scanner-git
  3. yay hyprwayland-git
  4. [Optional] 可以在 console 用 hyprland 进桌面, 但是基本什么都干不了, cmd 下的 hyprland 不会接收到我的 Super 按键事件

2. 配置

  1. 先别急着用 sddm 进 hyprland, 在 Arch KDE(或现有桌面)下
  2. 创建或更改 ~/.config/hypr/hyprland.conf, 例子 hyprwm/Hyprland, 可以直接复制覆盖
  3. 确认好基本的设置比如 Super key 是什么, terminal 有没有安装(默认是 kitty) 可能没有安装然后会导致开不了控制台基本就很难受
  4. 然后就可以进去边用边设

2.1 MONITORS

可以给显示器设置摆放位置和刷新率, 比如我放一个 AOC 在左边, 笔记本屏幕在右边

1
2
3
4
5
6
7
8
9
################
### MONITORS ###
################

# See https://wiki.hyprland.org/Configuring/Monitors/
monitor=,preferred,auto,1
# auto put AOC in left
monitor=desc:Chimei Innolux Corporation 0x15E8,1920x1080@60,1920x0,1
monitor=desc:AOC 27B2 0x0000CD6A,1920x1080@75,0x0,1

其中 monitor 的 description 可以在 hyprctl monitors 拿到. 尽量别设负数 position (虽然也能用), 会导致一些程序运行错误, 比如 hyprshot.

2.2 MY PROGRAMS

可以设 terminal 回 konsole

2.3 Autostart

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
#################
### AUTOSTART ###
#################

# Autostart necessary processes (like notifications daemons, status bars, etc.)
# Or execute your favorite apps at launch like this:

exec-once=dbus-update-activation-environment --systemd WAYLAND_DISPLAY XDG_CURRENT_DESKTOP # for screen sharing
# exec-once = ~/xdg-deksop-portal-hyprland-startup.sh
exec-once = $terminal
# notification
exec-once = dunst
# status bar and background
exec-once = waybar -c ~/.config/waybar/waybar.conf
# wallpaper
exec-once = hyprpaper --config ~/.config/hypr/hyprpaper.conf
# copy-paste manager
exec-once = wl-paste --type text --watch cliphist store #Stores only text data
exec-once = wl-paste --type image --watch cliphist store #Stores only image data
# save paste constent after application closed
exec-once = wl-clip-persist --clipboard regular

# KDE auth kit - auth popup
exec-once=/usr/lib/polkit-kde-authentication-agent-1
# fcitx5 config
exec-once=fcitx5-remote -r
exec-once=fcitx5 -d --replace
exec-once=fcitx5-remote -r
# icon indicator on waybar
exec-once=nm-applet --indicator
exec-once=blueman-applet
  • wl-paste wl-clip-ersist waybar 等需要额外安装, 用 pacman 或 yay
  • wl-paste 可以用来管理复制的内容, 然后用快捷键比如 Super + V 看历史
  • fcitx 解决方法参考 hyprwm/Hyprland/discussions/421

2.4 INPUT

  • kb_options 可以用来设 compose key 比如 kb_options = compose:ralt
  • follow_mouse 用来选鼠标交互方式, 比如鼠标 1=hover(放上去就选中窗口) 或者 2=click(点击选中)
  • scroll_factor 设置滚动速度

2.5 ENV

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
#############################
### ENVIRONMENT VARIABLES ###
#############################

# See https://wiki.hyprland.org/Configuring/Environment-variables/

# fcitx
# env = GTK_IM_MODULE,fcitx # set GTK seperately for fcitx instead of setting GTK_IM_MODULE
env = QT_IM_MODULE,fcitx
env = QT_IM_MODULES,wayland;fcitx;ibus
env = XMODIFIERS,@im=fcitx
env = SDL_IM_MODULE,fcitx
env = GLFW_IM_MODULE,ibus

env = GDK_BACKEND,wayland,x11,*
env = ELECTRON_OZONE_PLATFORM_HINT,wayland
env = QT_QPA_PLATFORM,wayland;xcb
env = SDL_VIDEODRIVER,wayland
env = CLUTTER_BACKEND,wayland

env = XCURSOR_SIZE,24
env = HYPRCURSOR_SIZE,24
env = XDG_MENU_PREFIX,arch-
env = XDG_CURRENT_DESKTOP,Hyprland
env = XDG_SESSION_TYPE,wayland
env = XDG_SESSION_DESKTOP,Hyprland

2.6 KEYBINDINGSS

大部分都是默认

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
####################
### KEYBINDINGSS ###
####################

# See https://wiki.hyprland.org/Configuring/Keywords/
$mainMod = SUPER # Sets "Windows" key as main modifier

# Example binds, see https://wiki.hyprland.org/Configuring/Binds/ for more
bind = $mainMod, Q, exec, $terminal
bind = $mainMod, C, killactive,
bind = $mainMod, M, exit,
bind = $mainMod, E, exec, $fileManager
bind = $mainMod, F, togglefloating,
bind = $mainMod, R, exec, $menu
# bind = $mainMod, P, pseudo, # dwindle
bind = $mainMod, P, exec, $terminal -e " python"
bind = $mainMod, J, togglesplit, # dwindle

# Move focus with mainMod + arrow keys
bind = $mainMod, left, movefocus, l
bind = $mainMod, right, movefocus, r
bind = $mainMod, up, movefocus, u
bind = $mainMod, down, movefocus, d
# bind = $mainMod, down, layoutmsg, cyclenext

# Switch workspaces with mainMod + [0-9]
bind = $mainMod, 1, workspace, 1
bind = $mainMod, 2, workspace, 2
bind = $mainMod, 3, workspace, 3
bind = $mainMod, 4, workspace, 4
bind = $mainMod, 5, workspace, 5
bind = $mainMod, 6, workspace, 6
bind = $mainMod, 7, workspace, 7
bind = $mainMod, 8, workspace, 8
bind = $mainMod, 9, workspace, 9
bind = $mainMod, 0, workspace, 10

# Move active window to a workspace with mainMod + SHIFT + [0-9]
bind = $mainMod SHIFT, 1, movetoworkspace, 1
bind = $mainMod SHIFT, 2, movetoworkspace, 2
bind = $mainMod SHIFT, 3, movetoworkspace, 3
bind = $mainMod SHIFT, 4, movetoworkspace, 4
bind = $mainMod SHIFT, 5, movetoworkspace, 5
bind = $mainMod SHIFT, 6, movetoworkspace, 6
bind = $mainMod SHIFT, 7, movetoworkspace, 7
bind = $mainMod SHIFT, 8, movetoworkspace, 8
bind = $mainMod SHIFT, 9, movetoworkspace, 9
bind = $mainMod SHIFT, 0, movetoworkspace, 10

# Example special workspace (scratchpad)
bind = $mainMod, S, togglespecialworkspace, magic
bind = $mainMod SHIFT, S, movetoworkspace, special:magic

bind = $mainMod, V, exec, cliphist list | wofi --dmenu | cliphist decode | wl-copy
bind = $mainMod, G, exec, google-chrome-stable --enable-features=UseOzonePlatform --ozone-platform=wayland --enable-wayland-ime
bind = $mainMode, K, exec, kate
bind = $mainMode, Y, exec, spotify --enable-features=UseOzonePlatform --ozone-platform=wayland --enable-wayland-ime

# Scroll through existing workspaces with mainMod + scroll
bind = $mainMod, mouse_down, workspace, e+1
bind = $mainMod, mouse_up, workspace, e-1

# Move/resize windows with mainMod + LMB/RMB and dragging
bindm = $mainMod, mouse:272, movewindow
bindm = $mainMod, mouse:273, resizewindow

# bind=,Print,exec,hyprshot -m region --clipboard-only
# bind=,Print, exec, grimblast copy area
bind=,Print, exec,grim -g "$(slurp)" - | swappy -f -
# bindel=, XF86AudioRaiseVolume, exec, wpctl set-volume @DEFAULT_AUDIO_SINK@ 5%+
# bindel=, XF86AudioLowerVolume, exec, wpctl set-volume @DEFAULT_AUDIO_SINK@ 5%-
bind=, XF86AudioMute, exec, wpctl set-mute @DEFAULT_AUDIO_SINK@ toggle
bind =, XF86AudioPlay, exec, playerctl play-pause
bind =, XF86AudioPause, exec, playerctl play-pause
bind =, XF86AudioNext, exec, playerctl next
bind =, XF86AudioPrev, exec, playerctl previous
bind = , XF86AudioRaiseVolume, exec, volumectl up
bind = , XF86AudioLowerVolume, exec, volumectl down
# use acpi in /etc/acpi/handlers and /etc/acpi/events
# bind = , XF86MonBrightnessUp, exec, lightctl up
# bind = , XF86MonBrightnessDown, exec, lightctl down
bind = $mainMod, L, exec, hyprlock
  • bind bindl bindm 之类的大体上没有显著差别
  • hyprshot grimblast playerctl hyprlock, swappy 等要额外安装
  • Arch 没有 lightctl 可以用 acpi 代替, 参考 ejmastnak.com/tutorials/arch/backlight

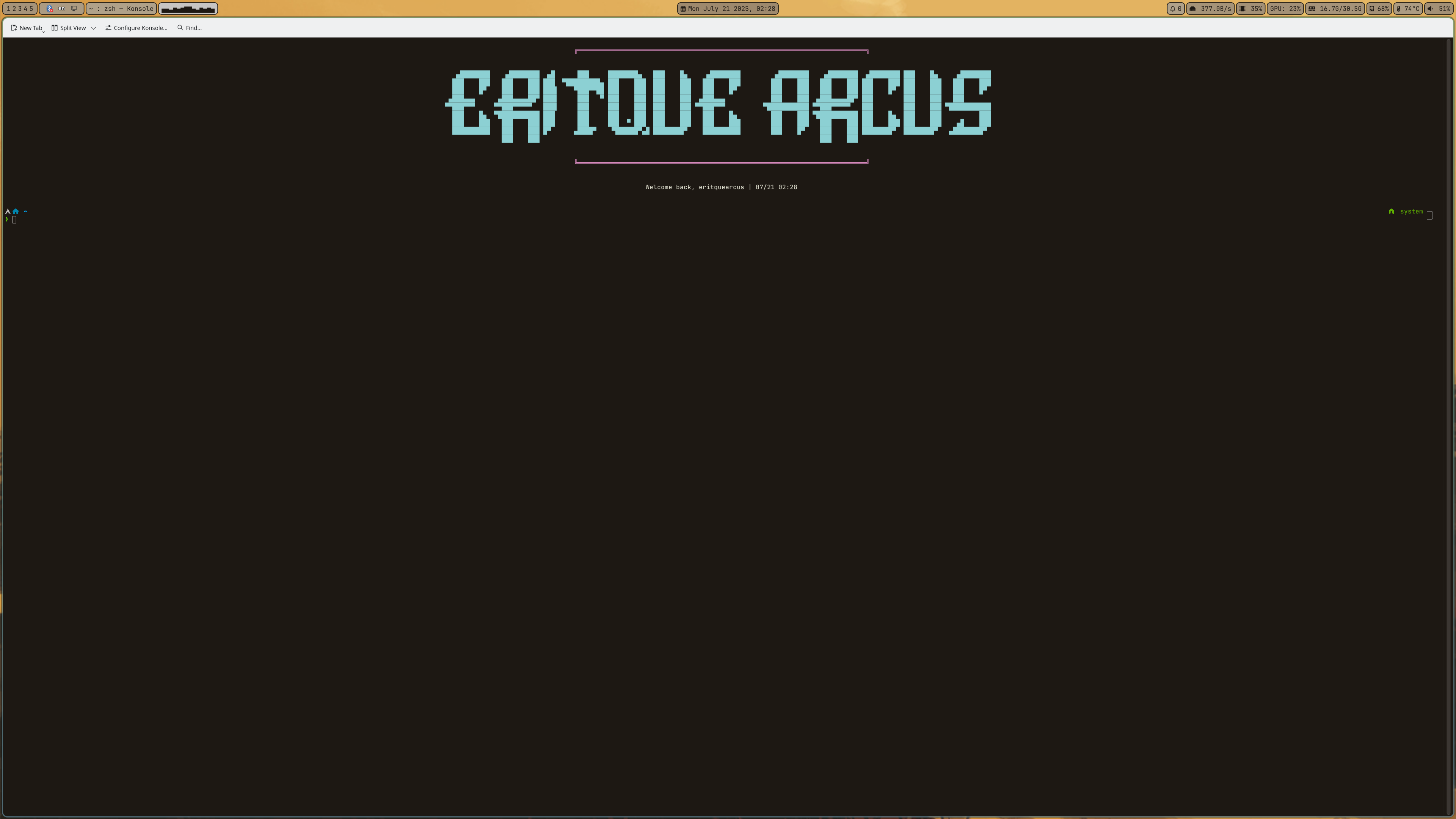

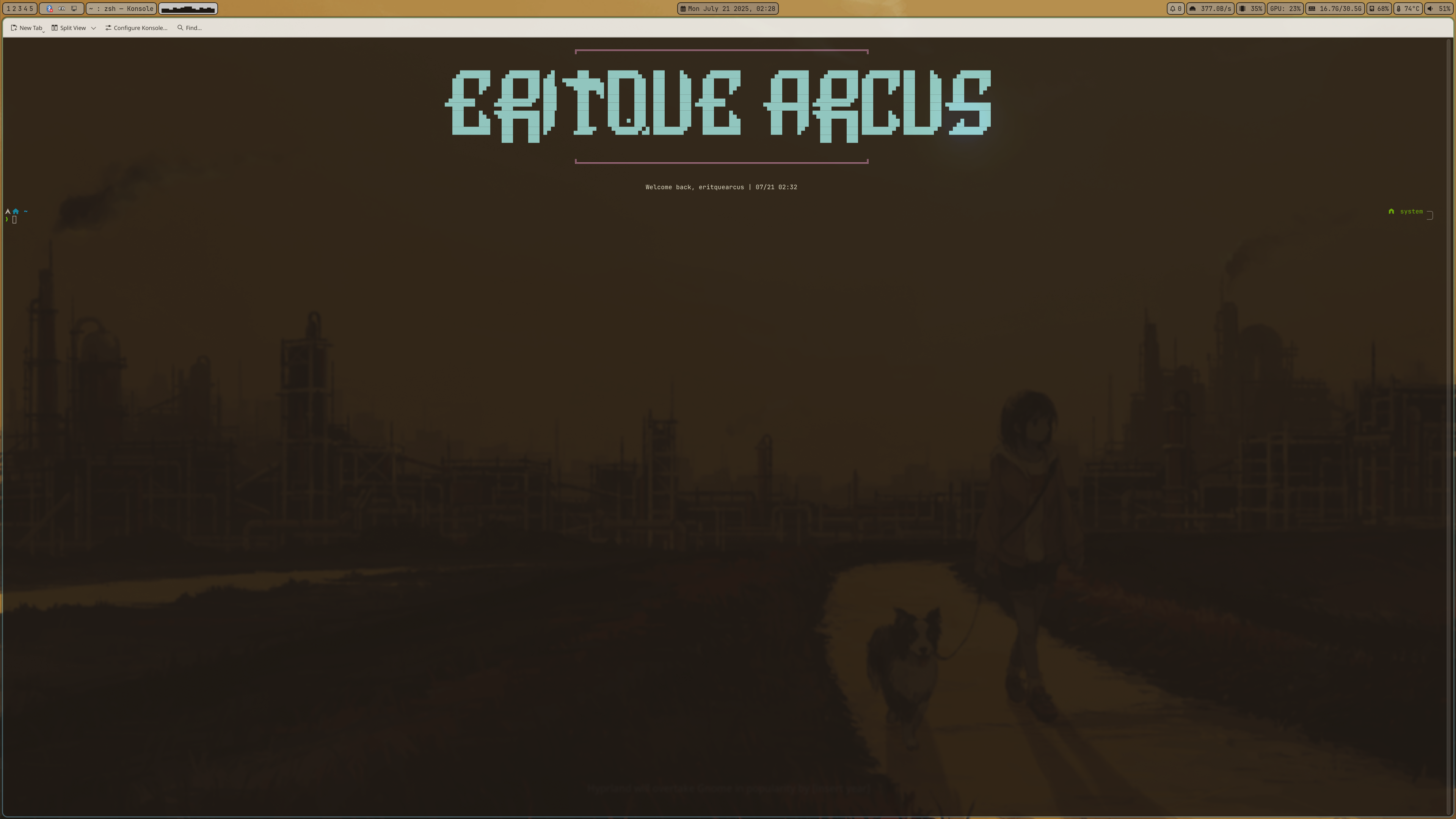

2.7 Waybar - Status Bar

  1. 创建 ~/.config/waybar/waybar.conf
  2. 上 Alexays/Waybar/wiki/Examples 找模板改, 我改的第三个, 配置如下

waybar.json

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
// -*- mode: json -*-
// from https://github.com/cjbassi/config/blob/master/.config/waybar/config

{
   "layer": "top",
   "position": "top",

   "modules-left": [
      "hyprland/workspaces",
      "custom/right-arrow-dark"
   ],
   "modules-center": [
      "custom/left-arrow-dark",
      "clock#1",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "clock#2",
      "custom/right-arrow-dark",
      "custom/right-arrow-light",
      "clock#3",
      "custom/right-arrow-dark"
   ],
   "modules-right": [
      "custom/left-arrow-dark",
      "wireplumber",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "memory",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "cpu",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "battery",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "disk",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "backlight",
      "custom/left-arrow-light",
      "custom/left-arrow-dark",
      "tray"
   ],

   "custom/left-arrow-dark": {
      "format": "",
      "tooltip": false
   },
   "custom/left-arrow-light": {
      "format": "",
      "tooltip": false
   },
   "custom/right-arrow-dark": {
      "format": "",
      "tooltip": false
   },
   "custom/right-arrow-light": {
      "format": "",
      "tooltip": false
   },

   "hyprland/workspaces": {
      "disable-scroll": true,
      "format": "{name}",
      "on-click": "activate"
   },

   "clock#1": {
      "format": "{:%a}",
      "tooltip": false
   },
   "clock#2": {
      "format": "{:%H:%M}",
      "tooltip": false
   },
   "clock#3": {
      "format": "{:%m-%d}",
      "tooltip": false
   },

   "wireplumber": {
      "format": "{icon} {volume:2}%",
      "format-bluetooth": "{icon}  {volume}%",
      "format-muted": "MUTE",
      "format-icons": {
         "headphones": "",
         "default": [
            "",
            ""
         ]
      },
      "scroll-step": 5,
      "on-click": "pamixer -t",
      "on-click-right": "pavucontrol"
   },
   "memory": {
      "interval": 5,
      "format": "Mem {}%"
   },
   "cpu": {
      "interval": 5,
      "format": "CPU {usage:2}%"
   },
   "battery": {
      "states": {
         "good": 95,
         "warning": 30,
         "critical": 15
      },
      "format": "{icon} {capacity}%",
      "format-icons": [
         "",
         "",
         "",
         "",
         ""
      ]
   },
   "disk": {
      "interval": 5,
      "format": "Disk {percentage_used:2}%",
      "path": "/"
   },
   "backlight": {
        "format": "\udb80\udcdf {percent}%",
        "scroll-step": 5
    },
   "tray": {
      "icon-size": 20
   }
}

其中 pavucontrol pamixer 得另外装
style.css

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
* {
   font-size: 20px;
   font-family: monospace;
}

window#waybar {
   background: #292b2e;
   color: #fdf6e3;
}

#custom-right-arrow-dark,
#custom-left-arrow-dark {
   color: #1a1a1a;
}
#custom-right-arrow-light,
#custom-left-arrow-light {
   color: #292b2e;
   background: #1a1a1a;
}

#workspaces,
#clock.1,
#clock.2,
#clock.3,
#wireplumber,
#memory,
#cpu,
#battery,
#disk,
#backlight,
#tray {
   background: #1a1a1a;
}

#workspaces button {
   padding: 0 2px;
   color: #fdf6e3;
}
#workspaces button.focused {
   color: #268bd2;
}
#workspaces button:hover {
   box-shadow: inherit;
   text-shadow: inherit;
}
#workspaces button:hover {
   background: #1a1a1a;
   border: #1a1a1a;
   padding: 0 3px;
}

#wireplumber {
   color: #268bd2;
}
#memory {
   color: #2aa198;
}
#cpu {
   color: #6c71c4;
}
#battery {
   color: #859900;
}
#disk {
   color: #b58900;
}

#clock,
#wireplumber,
#memory,
#cpu,
#battery,
#disk,
#backlight{
   padding: 0 10px;
}

放在 ~/.config/waybar 下然后 exec-once 里启动

2.8 Hyprlock - screen Locker

  1. 创建 ~/.config/hypr/hyprlock.conf
  2. 复制 wiki.hyprland.org/Hypr-Ecosystem/hyprlock 上 Widgets 下来, 比如
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    background {
        monitor =
        # path = /home/me/someImage.png   # only png supported for now
        color = rgba(25, 20, 20, 1.0)

        # all these options are taken from hyprland, see https://wiki.hyprland.org/Configuring/Variables/#blur for explanations
        blur_passes = 0 # 0 disables blurring
        blur_size = 7
        noise = 0.0117
        contrast = 0.8916
        brightness = 0.8172
        vibrancy = 0.1696
        vibrancy_darkness = 0.0
    }
    input-field {
        monitor =
        size = 200, 50
        outline_thickness = 3
        dots_size = 0.33 # Scale of input-field height, 0.2 - 0.8
        dots_spacing = 0.15 # Scale of dots' absolute size, 0.0 - 1.0
        dots_center = false
        dots_rounding = -1 # -1 default circle, -2 follow input-field rounding
        outer_color = rgb(151515)
        inner_color = rgb(200, 200, 200)
        font_color = rgb(10, 10, 10)
        fade_on_empty = true
        fade_timeout = 1000 # Milliseconds before fade_on_empty is triggered.
        placeholder_text = <i>Input Password...</i> # Text rendered in the input box when it's empty.
        hide_input = false
        rounding = -1 # -1 means complete rounding (circle/oval)
        check_color = rgb(204, 136, 34)
        fail_color = rgb(204, 34, 34) # if authentication failed, changes outer_color and fail message color
        fail_text = <i>$FAIL <b>($ATTEMPTS)</b></i> # can be set to empty
        fail_transition = 300 # transition time in ms between normal outer_color and fail_color
        capslock_color = -1
        numlock_color = -1
        bothlock_color = -1 # when both locks are active. -1 means don't change outer color (same for above)
        invert_numlock = false # change color if numlock is off
        swap_font_color = false # see below

        position = 0, -20
        halign = center
        valign = center
    }
    label {
        monitor =
        text = cmd[update:1000] echo "<span foreground='blue'>$(date)</span> "
        text_align = center # center/right or any value for default left. multi-line text alignment inside label container
        color = rgba(200, 200, 200, 1.0)
        font_size = 25
        font_family = Noto Sans
        rotate = 0 # degrees, counter-clockwise

        position = 0, 80
        halign = center
        valign = center
    }

2.9 Electron on wayland

本节为了解决一些 electron 应用不能复制之类的问题

参考:

  1. 如果遇到 chromium / electron 无法复制 -> 可以开 xeyes 看看是不是跑在 X11 下(用 xeyes), 要跑在 wayland 上就没问题.
  2. 加 export ELECTRON_OZONE_PLATFORM_HINT=wayland 和 export QT_QPA_PLATFORM=wayland 让 electron 和 qt 程序跑在 wayland 上
  3. 如果遇到 fcitx5 无法在 chromium / elctron 在 wayland 上输入, 需要加参数 --enable-features=UseOzonePlatform --ozone-platform=wayland --enable-wayland-ime 在启动的时候, 比如 chrome 和 vscode

2.10 Screen sharing

本节为了解决不能分享屏幕或者录屏之类的问题

参考:

  1. 先按照文档1的安装 pipewire 和 wireplumber , 然后按照文档2的安装 xdg-desktop-portal-hyprland(可以卸载 xdg-desktop-portal-wlr 如果有).
  2. 根据文档2把 exec-once=dbus-update-activation-environment --systemd WAYLAND_DISPLAY XDG_CURRENT_DESKTOP 加进 hyprland.conf 里
    • Jetbrain IDEs 可能在一些操作后, 比如 Ctrl shift L 格式化后失去指针(不会显示正在更改的光标也无法输入), 目测是格式化弹窗用 enter 进行格式化而不是鼠标触发, 我一般用 Super + C 弹出 IDE 的关闭确认弹窗然后取消就可以了
    • Chrome 在跳弹窗的生活不会显示只会把 tab 冻结，用按住 SUPER 然后点一下 Chrome 就ok了
Prev
2024-11-10 14:12:24 #Arch
Next
